Our organization is counted among the dominating manufacturer, supplier, exporter and service provider of Institutional RO Systems. Developed from optimum grade filters, membranes, purification systems and other material, all our products are assured of having superior quality & giving remarkable purification results. Our high quality Institutional RO Systems are not just responsible for removing impurities from water but also for removing odor and bad taste. Further, clients can buy our purification systems in various standard models and specifications as per their requirements.
Key Features
Excellent performance
No leakage
Easy to install & operate
Durable membrane
- +91-9810365144
- Call Us
- watershed.india@gmail.com
- Mail Us
Institutional RO Systems
Institutional RO Systems
Institutional 100 LPH RO
Pre Treatment Unit
• Multi Grade Filter complete in all respect operation through Multi Port Valve and filled with filter media as per IS standards and final layer of activated carbon granules.
• Anti-Scaling Dosing System to reduce chemical hardness of raw water.
• Micron filtration will be provided separately to arrest fine suspended solids.
• Assumption: Inlet Water TDS < 1500 ppm
• Silica, Nitrates & Iron within limits.
• Model: Skid Mounted Unit-Open Execution Unit
• M.S. Fabricated Skid- One
• FRP Vessel (MGF): Wave Cyber- One
• Raw Water Feed Pump: 1/2 HP/Kirloskar- One
• High Pressure Multi Stage Pump: C.R.I.- One
• Powder Coated Electrical Panel Board- One
• Membrane Pressure Vessels P-V2540-One
• Membranes 2540: DOW / Hydranautics U.S.A.- One
• Pressure Gauges (Inlet & Outlet)- Two
• Rota Meters (One Permeate & One Reject side)- Two
• Low Pressure Switch- One
• High Pressure Switch- One
• Multi-Valve Membrane Flushing System- One
Institutional 50 LPH RO
Specification of the System
• Type: Wall Mounted
• Frame: SS-Open execution type
• Filtration Stages: Five
• Fittings: Push Fit Type
• Flow Rate: 50 LPH
• Membrane Housing: Single O- Ring - 02
• 1st Stage: Sediment Filter: 20-Filter Cartridge - 5-micron/Poly Propylene
• 2nd Stage: Organic Filter: 20 -Activated Carbon Block
• 3rd Stage: Micron Filter: 20-inches Poly Propylene
• 4th Stage: RO Membrane: 300 GPD-02
• 5th Stage: Post Carbon: Coconut Shell Grade Carbon
• Booster Pump: 300 GPD/32 V DC-02
• Power Supply: 32 V/3A - 02
• Solenoid Valves: For Membrane Safety
• Auto Flushing Circuit: For Membrane Flushing, during each switch ON
• Low Pressure Switch (LPS): For dry run protection
• High Pressure Switch (HPS): For auto operation when tank is full
• Installation Accessories: Housing Wrench, Inlet valve 3/8-RO pipe.

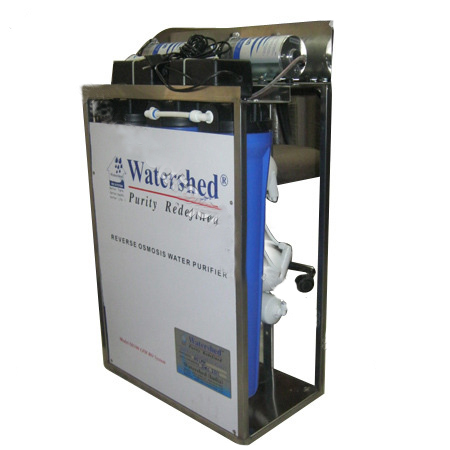

Institutional RO System
In a very short span of time, we have gained immense appreciation among our customers as one of the leading exporters & suppliers of Institutional RO System. These RO systems are manufactured using high grade materials & components in the conformity with industry quality standards. These systems are widely demanded in various institutions for purification of water. Institutional RO System offered by us is well accredited in the market for its distinctive features such as easy installation, negligible maintenance and unmatched performance. Technical Specifications.
Model: Institutional RO 25 LPH
| Specification of the System | |
| Type | Wall Mounted |
| Frame | SS open execution type |
| Filtration Stages | Five |
| Fittings | Push Fit Type |
| Flow Rated | 25 LPH |
| Membrane Housing | Single O- Ring - 01 |
| 1st Stage: Sediment Filter | 20 Filter Cartridge - 5-micron / Poly Propylene |
| 2nd Stage: Organic Filter | 20 Activated Carbon Block |
| 3rd Stage: Micron Filter | 20 inches Poly Propylene |
| 4th Stage: RO Membrane | 300 GPD-01 |
| 5th Stage: Post Carbon | Coconut Shell Grade Carbon |
| Booster Pump | 300 GPD/32 V DC 01 |
| Power Supply | 32 V/3A - 01 |
| Solenoid Valves | For Membrane Safety |
| Auto Flushing Circuit | For Membrane Flushing, during each switch ON |
| Low Pressure Switch (LPS) | For dry run protection |
| High Pressure Switch (HPS) | For auto operation when tank is full |
| Installation Accessories | Housing Wrench, Inlet valve 3/8 RO pipe |
